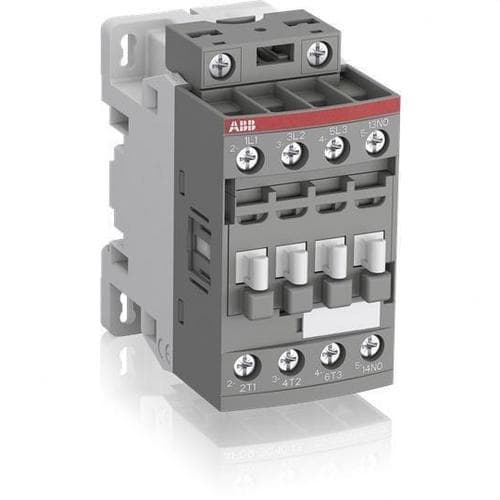

Contactor AF16-30-10 3P BOB 100-250VAC-DC

The ABB AF16-30-10-13 contactor, reference 1SBL177001R1310, is a three-pole contactor designed for the control of three-phase motors and other electrical loads in industrial, commercial, and automation applications. It offers a rated operational current of 18 A in AC-3 category at 400 V, equivalent to a motor power of up to 7.5 kW at 380/400 V, and incorporates a wide-range electronic coil from 100 to 250 V AC at 50/60 Hz and from 100 to 250 V DC.

ABB AF technology allows the use of a single coil with a wide control voltage range, simplifying contactor selection and providing greater tolerance to control voltage fluctuations. In addition, the electronic coil interface includes surge protection, so no additional suppressor is required in the applications covered by ABB.

Three-pole contactor for motor control

The ABB AF16-30-10-13 features 3 normally open main contacts and is specially designed for switching power circuits. Its main application is the control of three-phase motors, although it can also be used with non-inductive or slightly inductive loads within the utilization values specified by ABB.

In AC-3 category, intended for starting and stopping squirrel-cage motors, the contactor supports an operational current of 18 A at 380/400 V.

Motor power up to 7.5 kW at 400 V

For motor applications in AC-3 category, ABB specifies the following rated powers:

• 220/230/240 V: up to 4 kW.
• 380/400 V: up to 7.5 kW.
• 415 V: up to 9 kW.
• 440 V: up to 9 kW.
• 500 V: up to 9 kW.
• 690 V: up to 9 kW.

The final power rating should be selected taking into account the supply voltage, motor rated current, utilization category, and the specific installation conditions.

18 A in AC-3 and up to 30 A in AC-1

The contactor provides a rated operational current of 18 A in AC-3 at voltages from 220 to 440 V, within the conditions specified by ABB.

For non-inductive or slightly inductive loads in AC-1 category, it supports up to 30 A at 690 V and ambient temperatures up to 60 °C. At an ambient temperature of 70 °C, ABB specifies an AC-1 current of 26 A.

This allows the AF16-30-10-13 to be used both in motor applications and in other power circuits compatible with its utilization categories.

Wide-range electronic coil 100-250 V AC/DC

One of the main advantages of the ABB AF range is its wide-range electronic coil. This reference supports a control voltage of:

• 100-250 V AC at 50/60 Hz.
• 100-250 V DC.

The wide operating range allows the same contactor to be used with different control voltages without replacing the coil, making it easier to standardize components in electrical panels and machinery.

Greater tolerance to voltage variations

The integrated electronic coil interface helps the contactor manage significant variations in control circuit voltage. This feature is especially useful in installations where supply fluctuations could more easily affect conventional contactors.

The AF range has been developed by ABB to provide stable contactor operation within the wide voltage range specified for each coil version.

Integrated surge protection

The control electronics of the ABB AF16 include coil surge protection. Thanks to this feature, ABB indicates that AF contactors do not require the installation of additional coil surge suppressors.

This integration reduces the number of components needed in the control circuit and helps simplify electrical panel assembly.

Integrated 1 NO auxiliary contact

In addition to the three main power contacts, the AF16-30-10-13 incorporates one normally open 1 NO auxiliary contact.

This contact can be used in auxiliary circuits for signaling, interlocking, status feedback, or automation functions.

ABB also allows the number of auxiliary contacts to be expanded using compatible front or side-mounted additional blocks from the AF range.

3 normally open main poles

The contactor configuration is:

• Main contacts: 3 NO.
• Main NC contacts: 0.
• Integrated auxiliary contacts: 1 NO.
• Integrated auxiliary NC contacts: 0.

This arrangement is common for direct control of three-phase lines through an independent control circuit.

Operating voltage up to 690 V

ABB specifies a rated operational voltage of up to 690 V for the main circuit and auxiliary circuit, expanding the contactor’s possible use in different low-voltage electrical networks.

The device is designed for the control of power circuits up to 690 V AC and certain DC applications within the conditions established by the manufacturer.

Compact design for electrical panels

The ABB AF16-30-10-13 has a compact format that makes it easy to integrate into automation, motor control, and distribution electrical panels.

• Width: 45 mm.
• Height: 86 mm.
• Depth: 77 mm.
• Net weight: approximately 0.27 kg.

Its width of only 45 mm allows several devices to be installed while occupying minimal space inside the electrical cabinet.

Screw terminal connections

This AF16 contactor version uses screw terminals for the main circuit, control circuit, and auxiliary circuit connections.

This system provides a robust mechanical connection and facilitates the assembly, retightening, and maintenance operations commonly required in industrial electrical panels.

Compatible with ABB accessories

The ABB AF range offers a wide variety of accessories that allow the contactor’s functions to be expanded and complete motor control and protection solutions to be created.

Available accessories for compatible configurations include:

• Front-mounted auxiliary contact blocks.
• Side-mounted auxiliary contact blocks.
• Thermal and electronic overload relays.
• Mechanical interlocks.
• Connection accessories.
• Reversing configuration elements.

Compatibility of each accessory should be checked according to the specific contactor configuration and starting system.

Applications of the ABB AF16-30-10 contactor

Thanks to its electrical performance and the flexibility of its electronic coil, it can be used in many professional installations, such as:

• Starting and stopping three-phase motors.
• Pumps and hydraulic units.
• Fans and extraction systems.
• Air conditioning and HVAC equipment.
• Compressors compatible with its electrical characteristics.
• Industrial machinery.
• Conveyor belts.
• Automation panels.
• Resistive load control systems.
• Industrial and commercial installations.

Technical characteristics of ABB 1SBL177001R1310

• Brand: ABB.
• Reference: 1SBL177001R1310.
• Model: AF16-30-10-13.
• Family: ABB AF contactors.
• Type: three-pole power contactor.
• Number of main poles: 3.
• Main contacts: 3 NO.
• Integrated auxiliary contact: 1 NO.
• Rated AC-3 current at 380/400 V: 18 A.
• Rated AC-3 power at 380/400 V: 7.5 kW.
• Rated AC-3 power at 415 V: 9 kW.
• Rated AC-1 current at 40/60 °C: 30 A.
• Rated AC-1 current at 70 °C: 26 A.
• AC control voltage: 100-250 V at 50/60 Hz.
• DC control voltage: 100-250 V.
• Coil type: wide-range electronic.
• Coil surge protection: integrated.
• Rated operational voltage of main circuit: up to 690 V.
• Terminals: screw.
• Operating ambient temperature without thermal relay: -40 to +70 °C.
• Maximum operating altitude: 3,000 m.
• Width: 45 mm.
• Height: 86 mm.
• Depth: 77 mm.
• Net weight: approximately 0.27 kg.
• Main standards: IEC 60947-1, IEC 60947-4-1, EN 60947-1 and EN 60947-4-1.

Electronic coil to simplify panel design

Compared with conventional contactors that require a specific coil for each control voltage, the ABB AF16-30-10-13 can operate within a wide range of 100 to 250 V in both AC and DC. This helps reduce the number of references needed in stock and makes it easier to adapt the same panel design to different control voltages.

The integrated surge protection also reduces auxiliary components, simplifying wiring and saving space in the panel.

Versatile contactor for motors up to 7.5 kW at 400 V

The ABB AF16-30-10 1SBL177001R1310 contactor combines a capacity of 18 A in AC-3 and 7.5 kW at 400 V with three main poles, one NO auxiliary contact, and a wide-range 100-250 V AC/DC electronic coil.

Its compact 45 mm width, integrated surge protection, and compatibility with ABB accessories make it a particularly practical solution for motor control panels, HVAC installations, machinery, and automation systems.

Important: the contactor must be selected according to the load rated current, motor power, supply voltage, utilization category, switching frequency, and operating conditions. In motor applications, it must be complemented with appropriate overload and short-circuit protection.
