Surface Distribution Box MINI PRAGMA 24 Modules Blind Door

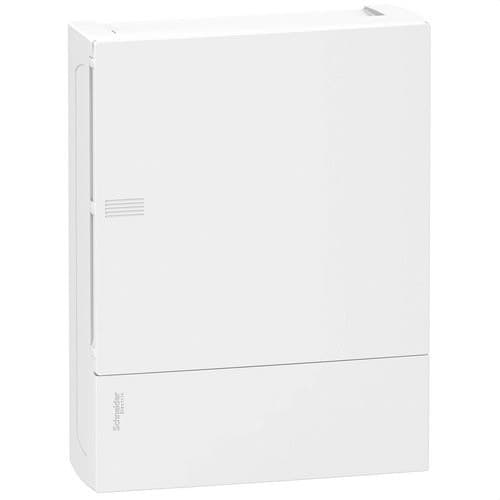

The Schneider Electric MIP10212 surface-mounted distribution box, part of the Resi9 MP range and also known as Mini Pragma, is a modular enclosure designed to organize and protect electrical switchgear in residential installations. It features 24 modules of 18 mm arranged in 2 rows of 12 modules, a white blank door, and a rated current of up to 63 A.

Its surface-mounted installation allows the panel to be mounted directly on the wall without the need for a recessed cutout. With external dimensions of 353 x 268 x 102 mm, IP40 and IK07 protection, and integrated DIN rails, it is a compact and functional solution for electrical panels in homes, renovations, and small distribution installations.

24 modules arranged in 2 rows

The Schneider Electric MIP10212 offers capacity for 24 standard 18 mm modules, distributed across two horizontal rows of 12 modules each.

This configuration makes it possible to house different modular protection and control devices, such as:

• Miniature circuit breakers.
• Residual current devices.
• Surge protection devices.
• Modular contactors.
• Impulse relays.
• Relays and auxiliary devices.
• Other modular devices compatible with DIN rail.

The two-row layout makes it easier to organize the different electrical circuits in the home and allows the various protections to be visually separated.

Surface-mounted installation

The MIP10212 enclosure is specifically designed for surface mounting. The panel body is fixed directly to the wall, avoiding the need for recessed installation work.

This feature is especially useful in new installations where a flush-mounted box was not planned, in extensions of existing panels, garages, technical areas, and renovation projects where installation needs to be simplified.

White blank door

The enclosure includes a solid white blank door that conceals the switchgear installed inside and gives the assembly a clean, discreet finish.

Both the door and the front panel have a RAL 9003 white finish, designed to blend easily into residential environments.

The door also protects the installed devices against accidental contact and helps maintain a neat appearance in the electrical panel.

Rated current up to 63 A

Schneider Electric specifies a rated current of 63 A for this 24-module enclosure.

This capacity makes it suitable for distribution and sub-distribution panels in residential installations, provided that the installed switchgear, conductors, and other components are correctly sized for the expected load.

IP40 protection rating

The Schneider Electric MIP10212 distribution box has an IP40 protection rating according to IEC 60529.

This rating provides protection against the ingress of solid objects larger than those covered by the classification and is mainly intended for indoor installations.

Schneider Electric also allows for IP41 with compatible accessories, when the installation configuration requires it.

IK07 impact resistance

The enclosure has an IK07 mechanical resistance, providing protection against common accidental impacts during use and maintenance of the installation.

The combination of IP40 and IK07 protection makes the box suitable for indoor distribution panels where a balance between mechanical protection, size, and ease of access is required.

Made of technoplastic

The rear part, front panel, and door are made of insulating technoplastic material. Schneider Electric specifies fire resistance for the enclosure materials of up to 650 °C under the applicable test conditions.

The use of insulating materials helps reduce the overall weight and makes handling easier during installation work.

Integrated DIN rails

The MIP10212 incorporates 35 mm asymmetric DIN rails for the installation of compatible modular switchgear.

The rails allow miniature circuit breakers, residual current devices, and other standardized devices to be mounted quickly, facilitating both initial assembly and future modifications or expansions of the panel.

Internal space for easier wiring

The panel has an approximate internal depth of 80 mm, providing space to organize the wiring behind and around the switchgear.

Its design is intended to facilitate common installer tasks, including the entry and distribution of conductors to the different rows of devices.

Dimensions of the Schneider Electric MIP10212

• Height: 353 mm.
• Width: 268 mm.
• External depth: 102 mm.
• Internal depth: approximately 80 mm.
• Number of rows: 2.
• Modules per row: 12.
• Total capacity: 24 modules of 18 mm.

These dimensions provide a capacity of 24 modules in a compact format, especially suitable for medium-sized residential panels.

Technical characteristics of the Schneider Electric MIP10212

• Brand: Schneider Electric.
• Reference: MIP10212.
• Current range: Resi9 MP.
• Common name: Mini Pragma.
• Type: modular distribution box.
• Installation type: surface-mounted.
• Number of rows: 2.
• Modules per row: 12.
• Total number of modules: 24 modules of 18 mm.
• Rated current: 63 A.
• Door type: blank / solid.
• Door color: white.
• Front color: white RAL 9003.
• Material: technoplastic.
• Rail: 35 mm asymmetric DIN rail.
• Protection rating: IP40.
• Upgradeable protection: IP41 with compatible accessory.
• Impact resistance: IK07.
• Material fire resistance: 650 °C.
• Height: 353 mm.
• Width: 268 mm.
• Depth: 102 mm.
• Internal depth: 80 mm.
• Operating ambient temperature: -25 to 60 °C.
• Mounting plate: not included.
• Terminal block: not included.
• EAN: 3606480145551.

Designed for residential electrical panels

Schneider Electric mainly targets this range of enclosures at residential electrical installations, both in new builds and renovations. Its 24 modules provide space to organize the protections for different lighting circuits, power outlets, air conditioning, appliances, and other household loads.

Surface mounting also makes it easier to replace or expand existing panels when it is not convenient to carry out masonry work to recess a new enclosure.

A compact and functional 24-module box

The Schneider Electric MIP10212 offers a practical solution for creating surface-mounted distribution panels with up to 24 modules. Its two rows of 12 modules, white blank door, DIN rails, and 63 A rated current make it possible to configure neat electrical panels adapted to the usual needs of a home.

Its 353 x 268 x 102 mm format, IP40 protection, IK07 resistance, and technoplastic construction make this box a suitable solution for indoor installations where ease of assembly, protection, and a discreet appearance are required.

Important: the MIP10212 reference refers only to the panel enclosure. Miniature circuit breakers, residual current devices, protection devices, terminals, and other modular components must be selected and installed separately according to the characteristics of each installation.
