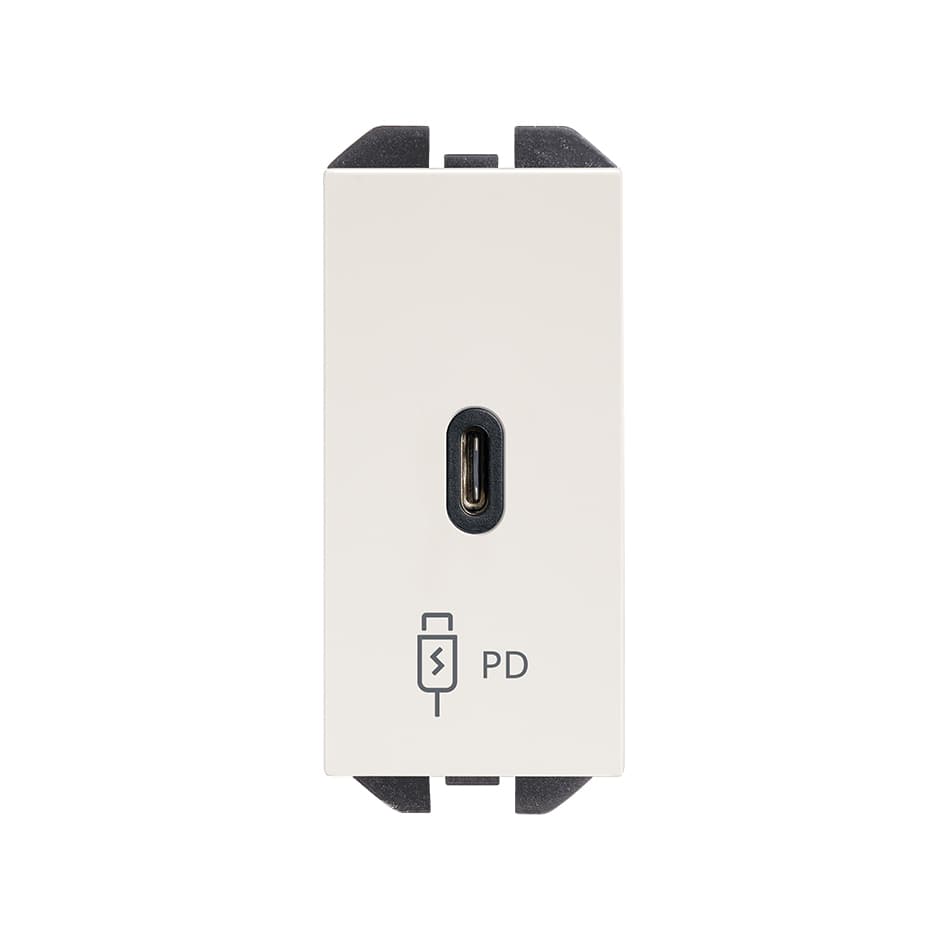

Matte White 20W Power Delivery USB-C Charger Simon 270

The Simon 270 USB-C charger 20000382-190 provides a fast-charging point integrated directly into the wall for smartphones, tablets, and other compatible devices. It features a USB Type-C port with Power Delivery technology and a maximum output of 20 W, eliminating the need for an external power adapter and keeping conventional power outlets free. This model comes in an elegant matte white finish and is designed to integrate with Simon 270 series frames.

Thanks to its flush-mounted installation in a universal box, the charger is integrated as just another electrical mechanism in the home, office, hotel, or commercial space. Its compact 45 x 45 mm format, direct power supply from the electrical installation, and screw-terminal connection provide a permanent and practical solution for charging devices via USB-C.

20 W USB-C charger with Power Delivery

The Simon 20000382-190 model incorporates one USB Type-C port compatible with Power Delivery (PD) technology and a maximum charging output of 20 W.

Power Delivery enables faster charging on compatible devices by adjusting the power supply according to the requirements supported by the connected equipment. It is especially suitable for mobile phones, tablets, and other electronic devices that use a USB-C connection.

The final charging speed will depend on the power supported by the connected device and the USB-C cable used.

Charging point integrated directly into the wall

When installed permanently, the Simon 270 charger provides one USB-C port always available without taking up a power outlet with an external adapter.

This setup is especially practical next to bedside tables, desks, work areas, living rooms, hotel rooms, kitchens, or any other place where electronic devices are regularly charged.

Simon highlights this advantage precisely: the integrated USB charger helps keep the conventional socket free for other appliances such as lamps, small household appliances, or other electrical equipment.

Compatible with the Simon 270 series

The charger is specifically designed for integration with Simon 270 frames, helping maintain a uniform aesthetic with switches, sockets, and other mechanisms from the same collection.

Its matte white finish corresponds to Simon 270 finish code 190 and has an equivalent shade to RAL 9003.

It can be combined with Simon 270 frames with one or multiple modules, allowing you to create assemblies with other electrical functions according to the installation design.

Compact 45 x 45 mm format

The front face of the mechanism measures approximately 45 x 45 mm, providing compact integration within Simon 270 mechanism systems.

Its reduced size makes it easy to create assemblies with other electrical mechanisms without giving up a USB-C charging point of up to 20 W.

Flush-mounted installation in a universal box

The Simon 20000382-190 is designed for flush-mounted installation in a universal box. It can be mounted in either horizontal or vertical orientation, offering flexibility to adapt it to the planned mechanism layout in each project.

The system uses screw-terminal connection and accepts conductors with a cross-section between 1.5 and 2.5 mm².

Simon specifies a conductor stripping length of 7 mm to ensure proper electrical connection.

127/230 V~ power supply

The mechanism is ready to connect directly to the mains, with a voltage specified by Simon of 127/230 V~ and an operating frequency of 50 to 60 Hz.

In this way, the mechanism itself performs the necessary conversion to power the USB-C port, without the need to install an additional transformer or external charger.

IP20 protection

The charger has an IP20 protection rating, suitable for indoor installations under normal use conditions.

It must be installed in accordance with the manufacturer’s instructions and the regulatory requirements applicable to the specific location.

Made of thermoplastic

The charger front is made of thermoplastic material, selected for integration within the Simon 270 range of mechanisms.

The matte white finish allows it to be combined with other mechanisms and frames from the same collection for a visually uniform installation.

Operating temperature range

Simon specifies an operating temperature range of 0 to 35 °C.

For storage, the product supports temperatures between -25 and 50 °C.

Easy maintenance

To clean the charger, Simon recommends using a soft, dry cloth. Abrasive cloths or cleaning products containing chlorine should not be used, as they could damage the mechanism’s finish.

Product contents

Reference 20000382-190 is supplied as a set consisting of:

• USB-C charger mechanism.
• Matte white finish cover.
• Instruction sheet.

The corresponding Simon 270 frame must be selected according to the installation configuration.

Technical specifications of the Simon 20000382-190

• Brand: Simon.
• Series: Simon 270.
• Reference: 20000382-190.
• Type: flush-mounted USB charger.
• Port type: USB-C.
• Number of USB ports: 1.
• Charging technology: Power Delivery.
• Maximum power: 20 W.
• Power supply: 127/230 V~.
• Frequency: 50-60 Hz.
• Finish: matte white.
• Equivalent color: RAL 9003.
• Material: thermoplastic.
• Compatibility: Simon 270 frames.
• Front dimensions: 45 x 45 mm.
• Installation type: flush-mounted.
• Installation box: universal.
• Installation orientation: horizontal or vertical.
• Connection type: screw terminals.
• Supported conductor cross-section: 1.5-2.5 mm².
• Stripping length: 7 mm.
• Protection rating: IP20.
• Operating temperature: 0 to 35 °C.
• Storage temperature: -25 to 50 °C.
• Net weight: approximately 0.04 kg.
• EAN: 8421053358696.
• Marking: CE.

Ideal for homes, hotels, and workspaces

The Simon 270 20 W Power Delivery USB-C charger is a practical solution for adding permanent charging points in homes, hotels, apartments, offices, meeting rooms, and other spaces where mobile devices are used regularly.

Its direct wall integration avoids relying on external chargers, frees up traditional power outlets, and helps maintain a coordinated aesthetic with the rest of the Simon 270 mechanisms.

With 20 W power, USB-C port, Power Delivery, matte white finish, and flush-mounted installation, the Simon 20000382-190 combines fast charging and integrated design in a single electrical mechanism.
