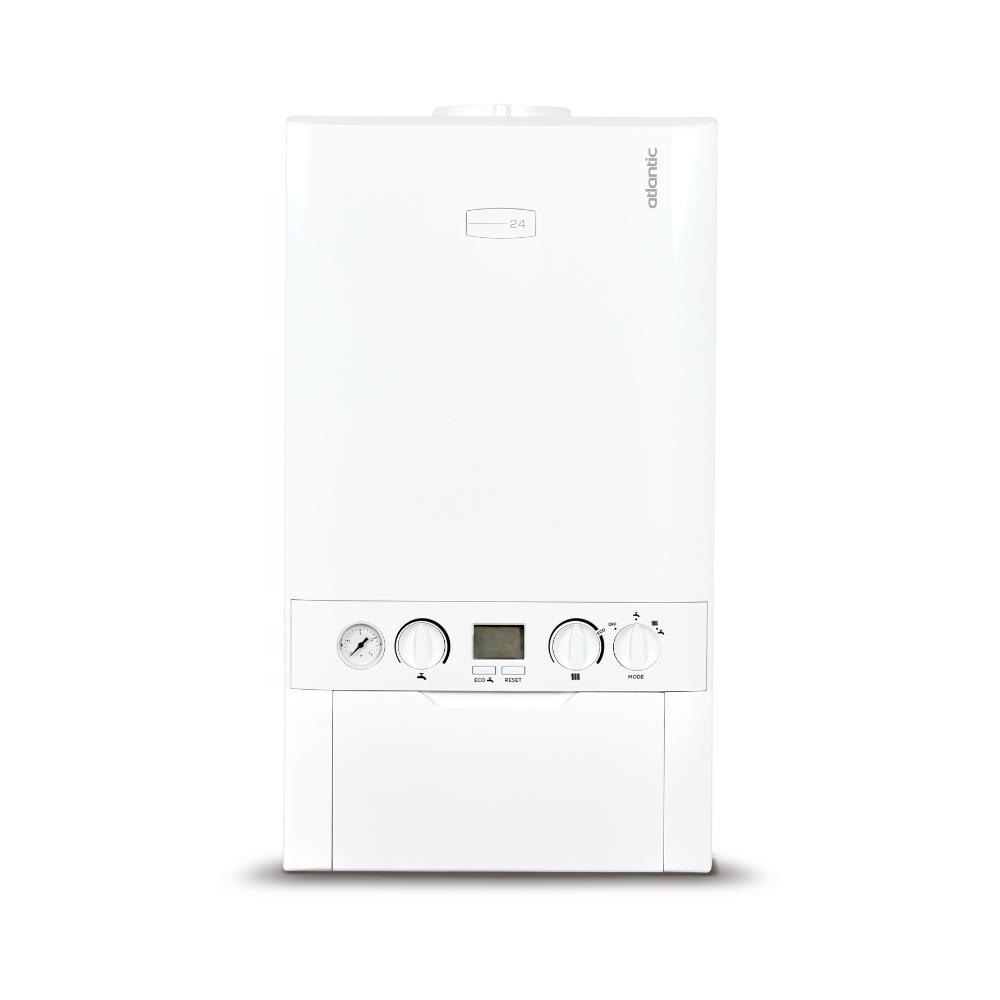

Thermor LOGIC MICRO 24 Condensing Boiler

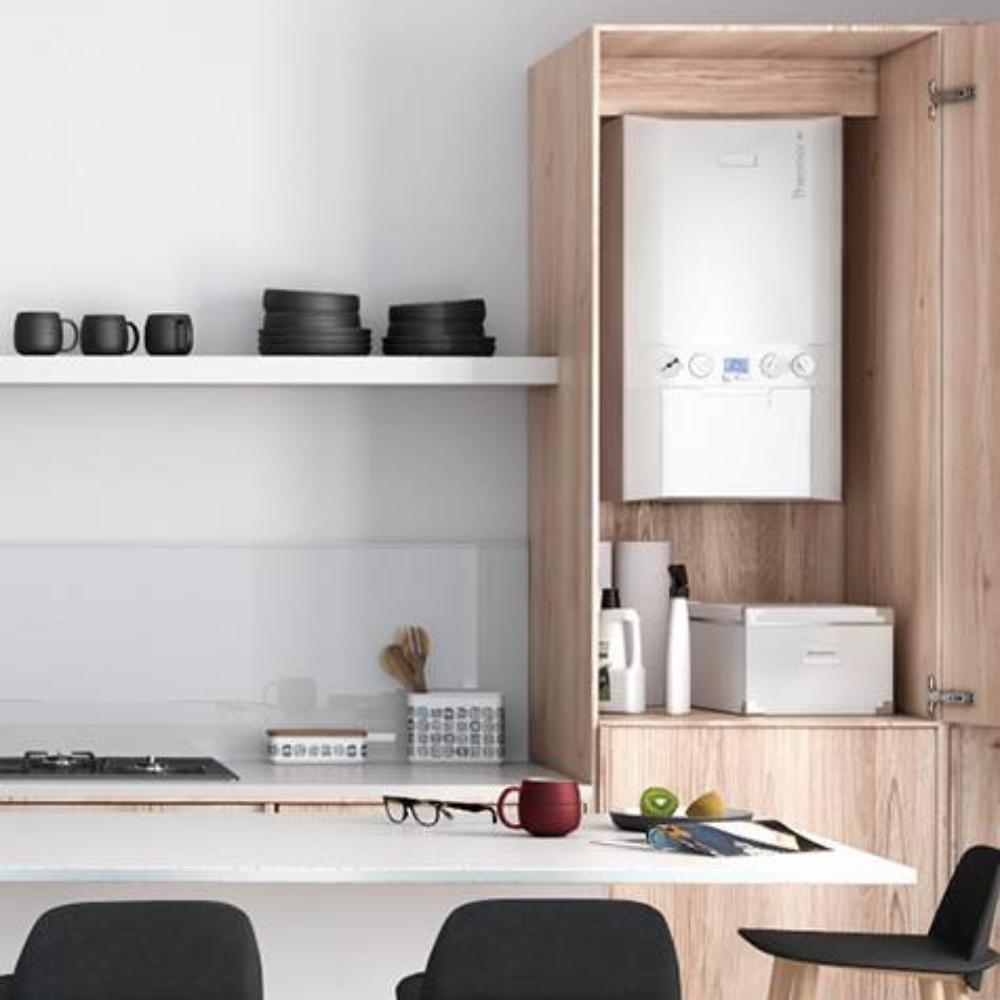

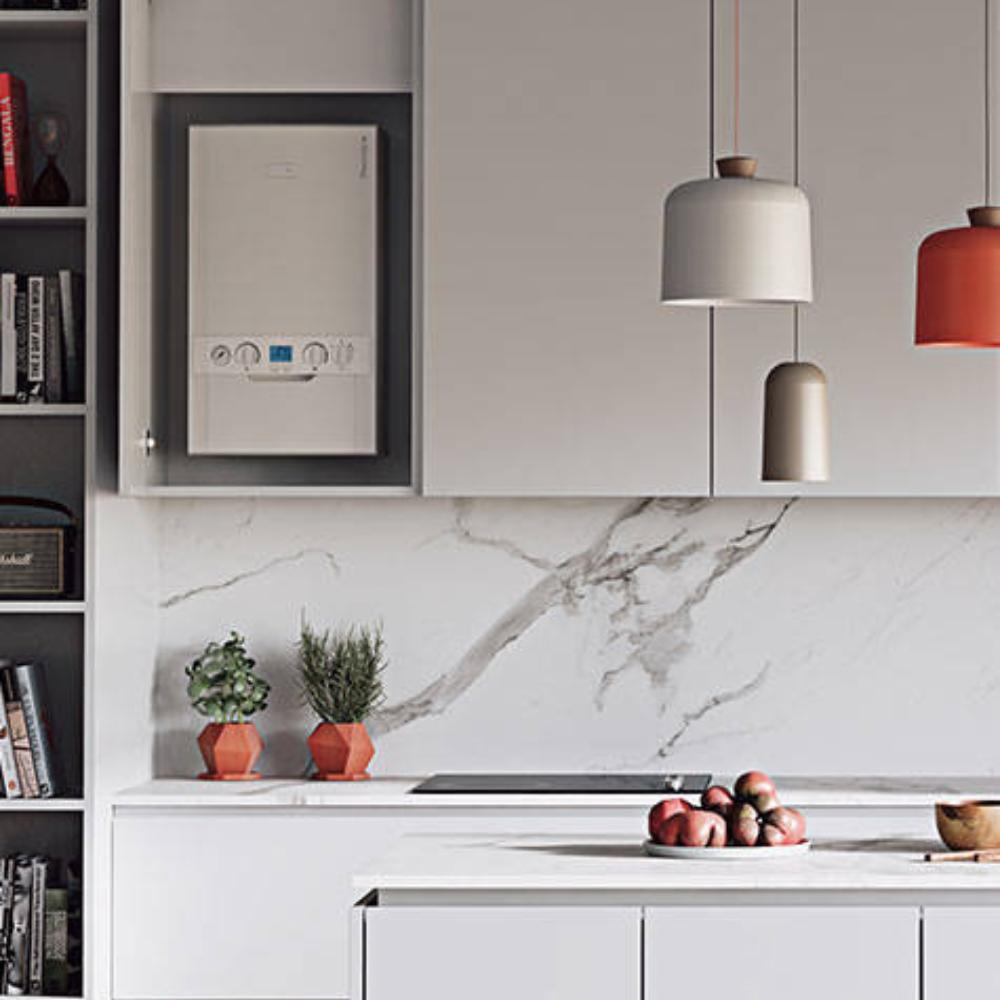

The Thermor LOGIC MICRO 24 (Ref. 750044) is a wall-mounted condensing boiler designed to provide efficient heating and consistent hot water in homes where space and quiet operation matter. Its compact size allows it to be integrated into a kitchen cabinet, and its modulating burner adjusts power output to use only the energy needed.

What's Included

• Thermor LOGIC MICRO 24 Boiler
• Connection tap set
• Flue outlet chimney (concentric duct)
• Installation and user manual

Key Features

• Fast and stable hot water: comfortable temperature without fluctuations.
• Energy saving: condensing technology that utilizes residual heat.
• Quiet operation: perfect for indoor installations.
• Power modulation: automatically adapts to actual demand.
• Flexible installation: supports horizontal or vertical flue outlet.
• Natural gas or propane: convertible with adaptation kit.

Main Technical Data

• Nominal power: 24 kW (heating and hot water).
• Hot water flow rate: up to ~13.9 l/min (approximate).
• Dimensions: 70 × 39.5 × 27.8 cm (height × width × depth).
• Weight: ~28.8 kg.
• Heating temperature range: approx. 30–80 °C.
• Power supply: 230 V / 50 Hz.
• Flue outlet: horizontal up to ~13 m; vertical up to ~36 m.
• Gas type: natural (standard) or propane with conversion kit.

Installation and Compatibility

• Must be installed and commissioned by an authorized professional.
• Check local regulations for flue outlet and room ventilation.
• It is recommended to add a modulating thermostat for greater comfort and savings.

Recommended for

• Medium-sized apartments and houses with 1–2 bathrooms and high hot water demand.
• Renovations where a compact and low-noise boiler is needed.
