Toshiba Estía All-In-One Beta Y 65 11 kW 210 Liters Aerothermal Set - Three-Phase

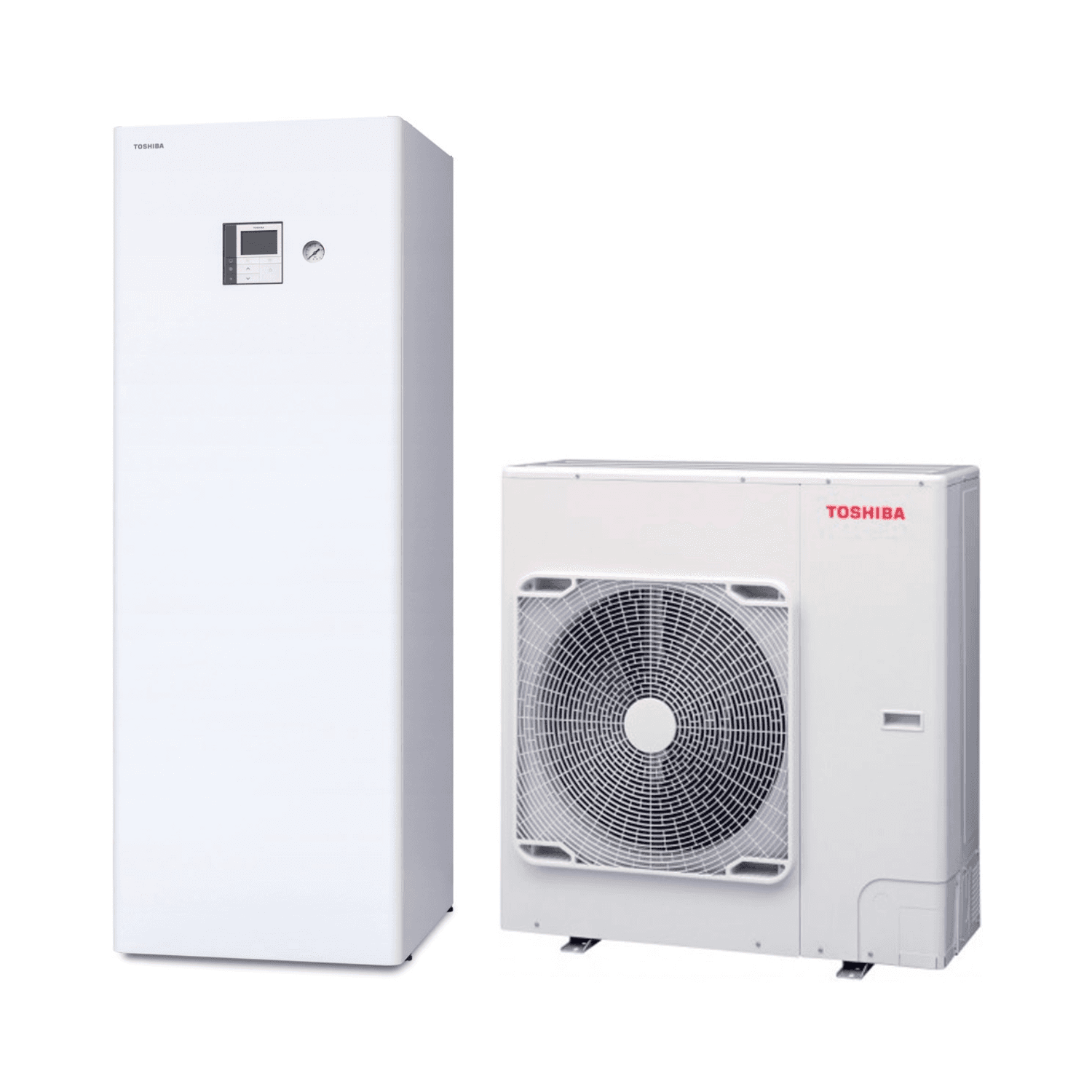

The Toshiba Estía All-In-One Beta Y 65 11 kW 210 liters – Three-Phase set offers a complete and highly efficient aerothermal solution for heating, cooling, and domestic hot water (DHW) production. It consists of the indoor unit HWT-1102S21SM3W-E with an integrated 210-liter tank and the three-phase outdoor unit HWT-1101H8W-E, both part of the Estía R32 All-In-One range with built-in smart control.

Main Features

• Power supply: Three-phase 400 V / 50 Hz
• Nominal thermal power (A7/W35): 11.00 kW
• COP (A7/W35): 4.60
• Capacity at –7 °C (A-7/W35): 7.90 kW
• Maximum water temperature: 60 °C
• Seasonal efficiency class: A+++ (35 °C) / A++ (55 °C)
• Refrigerant: R32 low GWP, environmentally friendly
• Integrated tank: 210 liters in vitrified steel, with high-efficiency coil
• Integrated control: multifunction digital interface with zone management and weekly programming
• Operating range: down to –25 °C outdoors

Design and Efficiency

The Estía Beta Y range is designed to deliver maximum performance in three-phase installations requiring high power and efficiency. Equipped with a Twin Rotary Inverter compressor, it ensures quiet, stable operation with reduced energy consumption. The All-In-One design integrates the hydraulic module and the 210-liter DHW tank into a single structure, optimizing space and simplifying installation.

Comfort and Control

The system features an integrated control with an intuitive digital display, allowing you to manage heating, cooling, and DHW from a single point. Thanks to intelligent regulation, the unit automatically adjusts power according to thermal demand, maintaining consistent comfort throughout the year while reducing energy consumption. It is also compatible with home automation systems and optional remote control.

Dimensions and Weight

• Indoor unit: 595 × 615 × 1800 mm – 85 kg
• Outdoor unit: 900 × 320 × 790 mm – 65 kg

In summary, the Toshiba Estía All-In-One Beta Y 11 kW three-phase 210 liters is a professional and sustainable solution, offering high performance (COP 4.60) and A+++ efficiency. It is perfect for residential or commercial installations that require complete, quiet, and reliable climate control, even in extreme cold conditions.
