Toshiba Estía All-In-One Air Source Heat Pump Set Gamma Y 65 14 kW 210 Liters - Three-Phase

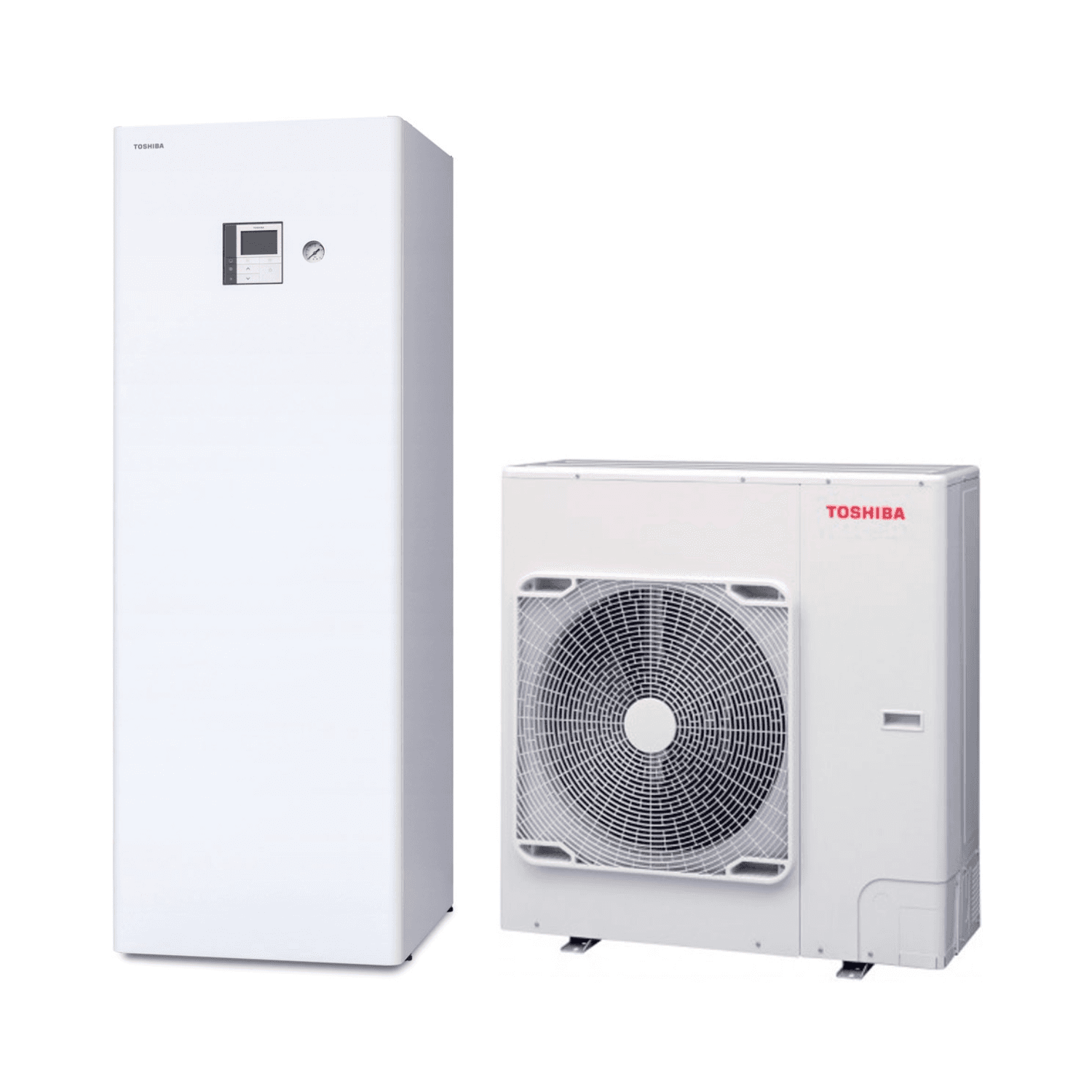

The Toshiba Estía All-In-One Gamma Y 65 14 kW 210 liters – Three-Phase set offers the most powerful climate control solution in the Estía R32 range, ideal for large homes or installations with high thermal demand. It consists of the HWT-1402S21SM3W-E indoor unit with a 210-liter tank and the HWT-1401H8W-E three-phase outdoor unit, both featuring Inverter Twin Rotary technology and integrated electronic control.

Main Features

• Power supply: Three-phase 400 V / 50 Hz
• Nominal thermal power (A7/W35): 14.00 kW
• COP (A7/W35): 4.55
• Capacity at –7 °C (A-7/W35): 10.50 kW
• Maximum water temperature: 60 °C
• Seasonal efficiency class: A+++ (35 °C) / A++ (55 °C)
• Refrigerant: R32 with low GWP, efficient and environmentally friendly
• Integrated tank: 210 liters in vitrified steel with high thermal transfer coil
• Integrated control: multifunction digital display with weekly programming and zone management
• Operating range: down to –25 °C outdoor temperature

Design and Efficiency

The Estía Gamma Y range represents the most powerful and advanced option among Toshiba’s three-phase air source heat pumps. Its All-In-One design integrates the hydraulic module and the DHW tank into a single compact unit, optimizing space and reducing installation time. The Twin Rotary Inverter compressor and advanced electronic management ensure stable performance, high seasonal efficiency, and quiet operation.

Comfort and Control

The integrated control allows you to easily adjust heating, cooling, and DHW production from its intuitive digital interface. The system automatically regulates power according to thermal demand, maintaining constant comfort and optimizing energy consumption. It is compatible with remote control and home automation systems for advanced home or building management.

Dimensions and Weight

• Indoor unit: 595 × 615 × 1800 mm – 85 kg
• Outdoor unit: 900 × 320 × 790 mm – 68 kg

In conclusion, the Toshiba Estía All-In-One Gamma Y 14 kW three-phase 210 liters offers maximum power, A+++ efficiency, and smart control, making it the ideal choice for residential or commercial projects that require comprehensive, reliable, and sustainable climate control all year round.
