Mitsubishi ECODAN ECO Inverter 6 kW 200 Liter Aerothermal Set

The Mitsubishi Electric ECODAN ECO Inverter 6 kW aerothermal system offers a comprehensive solution for heating, cooling, and domestic hot water (DHW) production in residential applications.

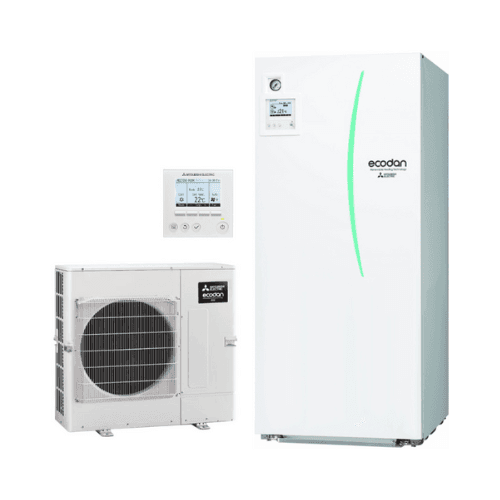

It consists of the indoor module ERST20C-VM2DR1 with a 200-liter tank and the outdoor unit SUZ-SWM60VA2, which features high-efficiency inverter technology to optimize performance and reduce energy consumption even under demanding weather conditions.

Technical Specifications

• Nominal heating capacity: 6.0 kW
• Type of heat pump: air-to-water, single-phase
• Refrigerant: R32
• Flow temperature range: up to 60 °C
• SEER: 4.83
• SCOP: 4.52
• COP: 4.40
• DHW tank: 200 liters integrated
• Connectivity: remote control and Smart Grid compatibility
• Power supply: single-phase 230 V / 50 Hz
• Outdoor unit sound level: 51 dB(A)
• Hydraulic connections: 1” G male thread

Set Composition

• 1 × Indoor unit ERST20C-VM2DR1 (Hydrobox with 200 L tank)
• 1 × Outdoor unit SUZ-SWM60VA2 (6 kW air-to-water heat pump)

Installation and Maintenance

The system is delivered as a preconfigured set for direct hydraulic installation, with no additional materials included.
Its compact design allows easy integration into technical rooms or domestic interiors.
Includes modulating pump, backup heater, and integrated three-way valve.
The advanced ECODAN control enables zone management, scheduling, DHW production, and cooling mode, providing a complete and automated user experience.

Dimensions and Weight

• Indoor unit (ERST20C-VM2DR1): 1600 × 595 × 680 mm – 100 kg
• Outdoor unit (SUZ-SWM60VA2): 714 × 800 × 285 mm – 52 kg

Recommended Applications

Ideal for single-family homes, renovations, or new builds with underfloor heating, low-temperature radiators, or fan coils, where a comprehensive solution with high seasonal efficiency and low noise level is desired.
