Mitsubishi ECODAN ECO Inverter 4 kW 200 Liter Aerothermal Set

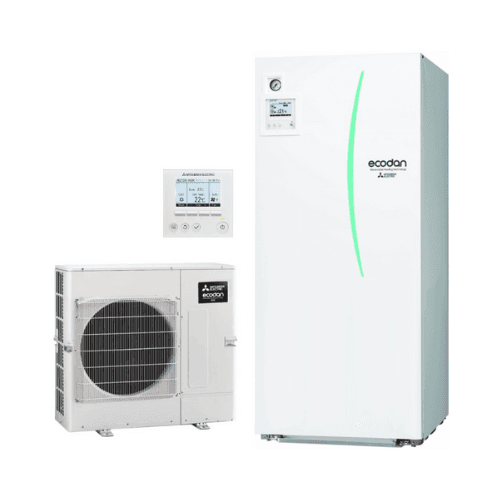

The Mitsubishi Ecodan ECO Inverter 4 kW 200 liters aerothermal system offers an all-in-one, compact solution for heating, cooling, and domestic hot water (DHW) production. It consists of the ERST20C-VM2DR1 indoor unit with a 200-liter storage tank and the SUZ-SWM40VA2 outdoor unit. Part of the Ecodan R32 range from Mitsubishi Electric, it is renowned for its reliability, low energy consumption, and quiet operation.

Main Features

• Nominal heating output (A7/W35): 4.00 kW
• Nominal cooling output (A35/W7): 5.00 kW
• SCOP (average climate): 4.60 (A+++)
• SEER: 5.10 (A++)
• COP (A7/W35): 4.52
• Maximum water temperature: 60 °C
• Refrigerant: Eco-friendly R32 with low global warming potential
• Integrated tank: 200 liters stainless steel
• Outdoor operating range: down to –20 °C in heating mode
• Power supply: Single-phase 230 V / 50 Hz

Design and Efficiency

The Ecodan ECO Inverter range from Mitsubishi Electric stands out for its A+++ seasonal efficiency and compact design with integrated tank, ideal for single-family homes or medium-sized residences. Its PANASONIC Twin Rotary Inverter technology continuously modulates power output, ensuring the lowest possible energy consumption. The R32 refrigerant enables more efficient and environmentally friendly operation.

Comfort and Smart Control

The system features an advanced FTC6 controller that precisely manages heating, cooling, and DHW. It offers weather compensation, time scheduling, and compatibility with remote control via the MELCloud app, allowing you to adjust temperatures and operating modes from any device. The integration of all components in a single unit reduces installation time and enhances the system’s thermal performance.

Dimensions and Weight

• ERST20C-VM2DR1 indoor unit: 1600 × 595 × 680 mm – 95 kg
• SUZ-SWM40VA2 outdoor unit: 800 × 285 × 550 mm – 40 kg

In summary, the Mitsubishi Ecodan ECO Inverter 4 kW 200 liters is an efficient, quiet, and sustainable solution that combines climate control and hot water in a single compact system, delivering outstanding performance and total comfort control.
